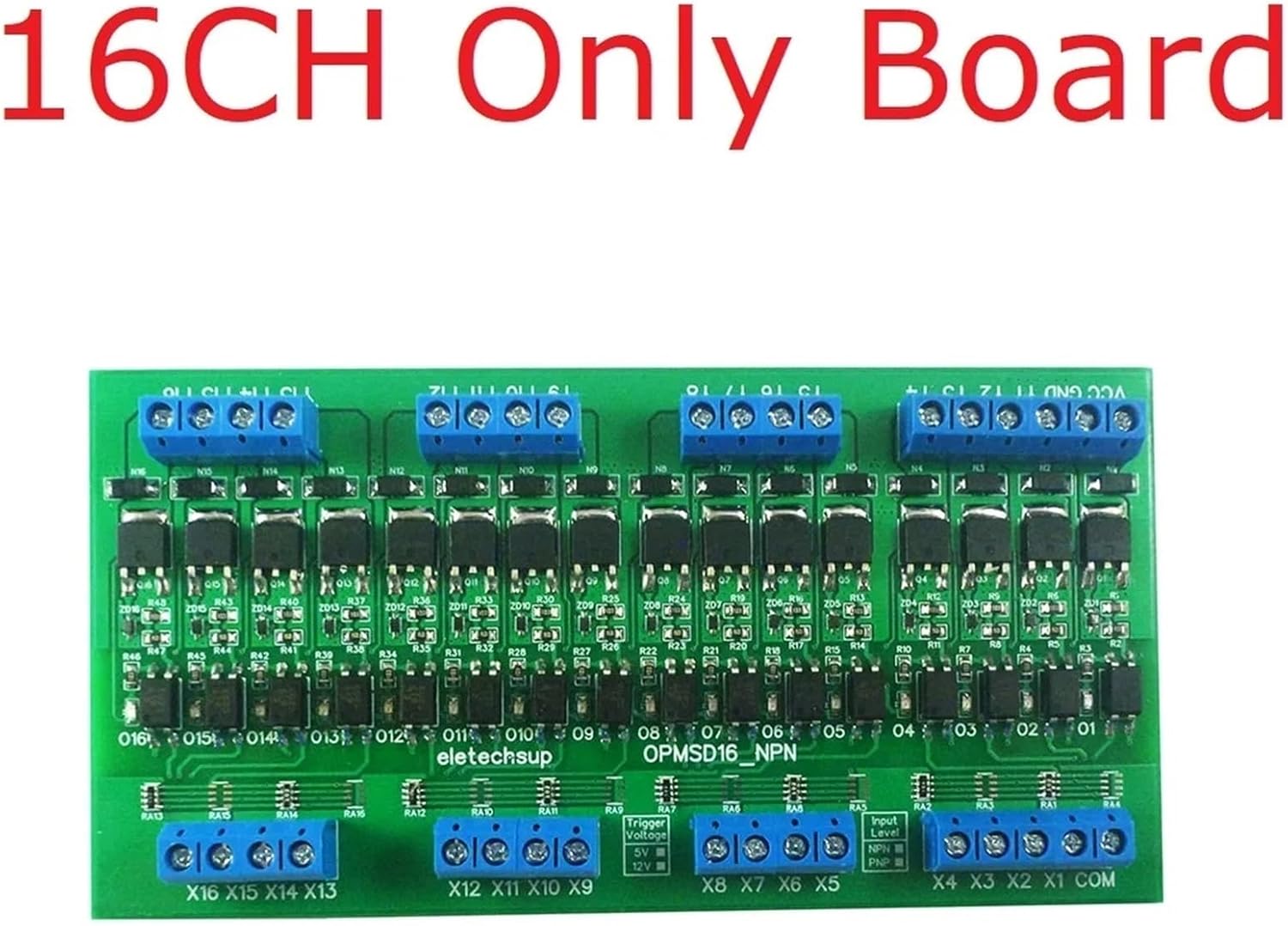

16CH DC 3.3-24V 5A MOS Solid State Relay Module Din Rail Mount NPN PLC IO Signal Amplifier for Motor Relay LED(Only Board,NPN in 12-24V_NPN Out)

Packing list: 1PCS (select the version you need)Description:Specification:Adopt original drive chip, stable and reliable performance.Compatible with postive control,negative control two input modes.Each channel has an LED indicator to indicate the current working state of the channel.The input signal adopts optocoupler isolation design, which has strong anti-interference ability.The module is designed wiht standard rail type.Technical Paramteres:Control Voltage: 3.3-8V and 8-24VInput current: 8-15mAOutput type: Non-Contact typeDrive component: P/N channel FETOperating time: 1ms or lessRest time: 1ms or lessMAX switching frequency: 2000HzModule installation method: standard rail mountingX1...X16 is the signal input terminal, COM is the signal common terminal.Input level signal: 5V version 3-8V;12V version 8-25VY1...X16 is MOS load output terminals.<;2A; DC 4.5-8V 4A;DC 8-24V 5A;16CH:Size :141*72*12(Only Board), 144*86*36(with Shell)Weight : 74g(Only Board),177g(with Shell)DIN rail Box parameters:Product model: UM72Color: greenWidth: suitable for PCB board width UM72(72mm)Insulation grade: flame-retardant VO gradeBackplane length: suitable for 141 mm PCB boardsNet weight: 103gInstallation: DIN35 and C45 rail

• Adopt original drive chip, stable and reliable performance.
• Compatible with postive control,negative control two input modes.
• Each channel has an LED indicator to indicate the current working state of the channel.
• The input signal adopts optocoupler isolation design, which has strong anti-interference ability.
• The module is designed wiht standard rail type.
