1Pcs Multifunction Drill Vise Fixture Working Table Mini Precision Milling Machine Worktable(BG6350)

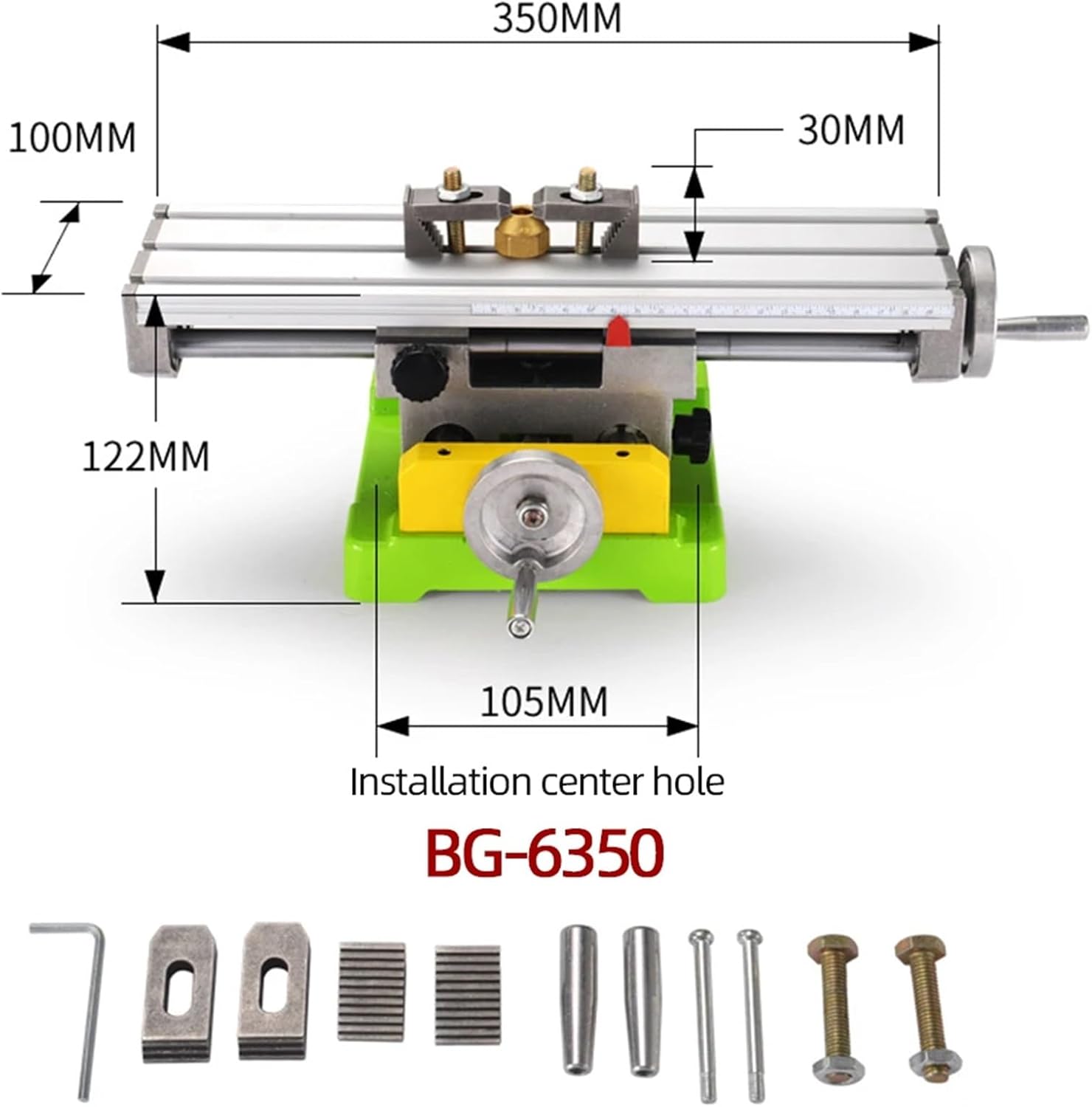

Hold Down ClampsFeatures:The table is suitable for Mini Drill and drill bracket series.It can also apply to other suitable machine.The work table is composed of several adjustable dovetail slotaluminum alloy composition, can guarantee the minimumspace and ensure the accuracy.The working table with three T shaped groove, standard size is 15x8x6mm.Scale is in front of the movable positioning.Zero adjustment handwheel rotates a circle of 1.25mm. A lattice is equal to 0.05mm.The X axis Y axis distance is 200mm, the stroke is 50mm.Working table size is 310x90mm and the height of 76mm, including two working clamp.Specification:Model: BG6300Table size: 300 * 90mmX -axis travel: 200mmY-axis travel: 50mmX Y-axis scale adjustment:1 circle = 1.25mmA subdivision marks= 0.05mmThe lead screws are M8X1.25Model: BG6330Table size: 330*95mmAdjustable for X direction:190mmAdjustment for Y direction:67mmX Y-axis scale adjustment:1 circle = 1.5mmA subdivision marks= 0.05mmThe lead screws are M10x2 to : Mini drill and drill bracket series and other suitable machineModel: BG6350Table size: 350*100mmAdjustable for X direction: 180mmAdjustment for Y direction: 50mmX Y-axis scale adjustment:1 circle = 3mmA subdivision marks= 0.05mmThe lead screws are M14x3 to : Mini drill and drill bracket series and other suitable machinePackage Included:1 x Mini Multifunction TableBG-6330BG-6350BG-6300==========Model Number : BG6300/BG6330/BG6350DIY Supplies : Woodworking

• Hold Down Clamps
• 1Pcs Multifunction Drill Vise Fixture Working Table Mini Precision Milling Machine Worktable
