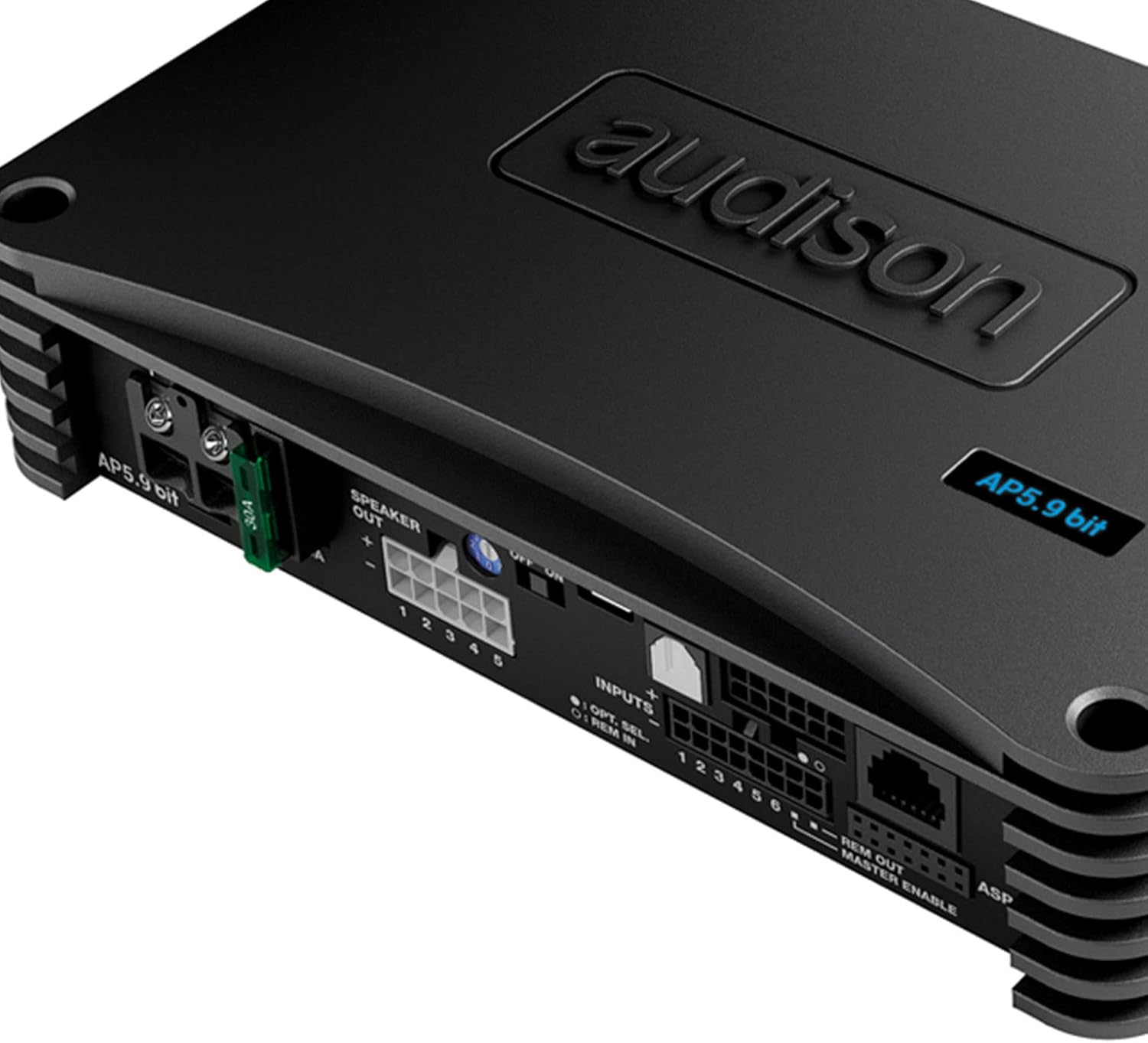

Audison Ap5.9 bit 5 channel amplifier with built in sound processor
4.8 (140 items)
Limited Time SaleUS$401.25 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209176794 | Release Date | 2026/03/29 | List Price | US$267.50 | Model Number | 209176794 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
AP5.9 bit -5CH AMP WITH 9CH DSP 2x40W+2x90W+1x270W AP5.9 bit amplifier is ideal to realize a two way front full active plus subwoofer system using the fifth mono channel with 270 W @ 2 Ω. The built-in processor, that this amplifier shares with the AP8.9 bit, provides the ability to assign the pre-outs to the AP4 D amplifier, creating a very powerful system in a small space thanks to the “rack mounting” system. Amplifier Stage - Distortion - THD @ 1 kHz, 4 Ω, 90% Output Power (Ch 1-2-3-4): 0.08 % Distortion - THD @ 1 kHz, 4 Ω, 90% Output Power (Ch 5): 0.1 % Bandwidth (-3 dB, 2 V RMS, 4Ω): 10 ÷ 20k Hz / 10 ÷ 500Hz SUB S/N ratio @ A weighted, 1V, Max Power: 95 dBA Damping factor @ 1 kHz, 2 V RMS, 4Ω: >70 Input sensitivity: 2 ÷ 15 V RMS Input impedance: 15k Ω Power Supply - Voltage: 7.5 ÷ 15 VDC Idling current: 1.5 A Switched off: <1.4 mA Consumption @ 14.4 VDC 2Ω Max Musical Power (without CPL): 30 A Remote IN 7 ÷ 15 VDC (1 mA) Remote OUT 11 ÷ 15 VDC (200 mA) Fuse 30 A ART (Automatic Remote Turn on/off) Speakers to input - selectable AST (Automatic Signal Turn on/off) Pre-In to input - selectable CPL (Continuous Power Limiting) Max continuous power - selectable
- Channels: 5
- PC connections Micro USB (1.1 / 2.0 / 3.0)
- Software/PC requirements: Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8
- Graphic card min. resolution: 800 x 600
- Ambient operating temperature range: 0 °C to 55 °C (32°F to 131°F)
| Model | AP5.9-bit |
|---|---|
| Voltage | 7.5 Volts (DC) |
| Brand Name | Audison |
| Unit Count | 1.0 Count |
| Item Weight | 1390 Grams |
| Manufacturer | Hertz |
| Output Power | 270 Watts |
| Material Type | Metal |
| Mounting Type | Surface Mount |
| Supply Current | 1.5 Amps |
| Item Dimensions | 7.8 x 5.31 x 1.77 inches |
| Package Type Name | cardboard box |
| Specification Met | Cea |
| Number of Channels | 5 |
| Included Components | AP5.9-bit |
| Warranty Description | 1-Year Manufacturer Warranty |
| Operating Temperature | 55 Degrees Celsius |
| Maximum Supply Voltage | 15 Volts (DC) |
| Minimum Supply Voltage | 7.5 Volts (DC) |
