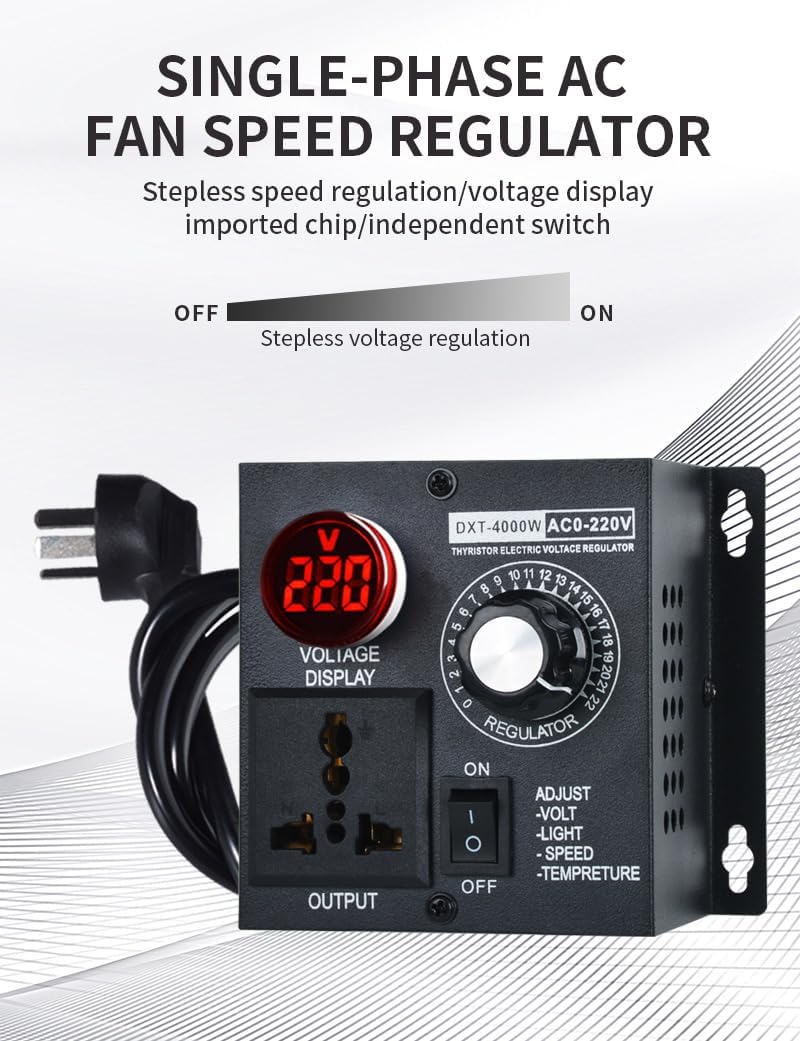

CJC 4000W AC Variable Speed Controller for CNC and AC Motors – Precision Fan and Motor Control

Product Name: Stepless Speed ​​Controller Power Frequency: 50-60Hz Product Model: DXT-4000W Input Voltage: AC110V Output Voltage: AC 10-110V/10-220V Adjustable Maximum Load: 4000W (Suitable for 2000W-3000W resistive loads) Long-Term Load: Resistive load 2000-2200W, Inductive load 1800-2000W Voltage Adjustment Range: Input 110V (10-110V), No-load is virtual voltage Rated Current: 9A Maximum Current: 18A Product Features: Zero hysteresis, zero delay, with peak voltage absorption circuit, and... Effective protection for high-power thyristors: surge protection, peak protection, and RC absorption multiple protections. Product Dimensions: 11.5x6x10cm Product Weight: 0.46kg Points 1. Powerful Functionality: Compatible with 110V power input, maximum current 18A, adjustable output voltage 10-110V/, maximum power 4000W. Resistive load: 2000-2200W, inductive load: 1800-2000W. 2. High-Quality Materials: The casing is made of flame-retardant material, combining high-efficiency flame retardancy with good heat dissipation. Ventilation holes are provided in the body for rapid heat dissipation, extending equipment lifespan. 3. Safe and Reliable: Uses imported chips for precise control and rapid response, featuring zero hysteresis and zero delay. Built-in peak voltage absorption circuit effectively protects thyristors, providing surge protection, peak voltage protection, and RC absorption for multiple protections, ensuring stable equipment operation. 4. Wide range of applications: Suitable for various resistive loads (such as electric cookers, electric heaters, soldering irons, etc.), some power tools (such as electric drills, angle grinders, etc.), and fans with a maximum power of 1500W and a voltage regulation of not less than 170V. 5. Multi-scenario control: Supports stepless speed regulation/voltage adjustment, ideal for bench testing, experiments, industrial applications, and DIY projects, allowing precise control of fan speed and voltage regulation. 6. Precautions: Not suitable for smart home appliances with complex circuit boards. The maximum power limit for inductive loads (fans, routers, soldering irons, small motors) is 1500W, and the maximum power limit for resistive loads (kettles, stoves, tungsten lamps, etc.) is 4000W.

• 1. High Power Output: Supports 120V/220V power input, handling up to 15A and 4000W maximum for versatile applications.
• 2. Durable Construction: Features SMD thyristors, aluminum heat sinks, and FR-4 circuit boards for high-temperature resistance and durability.
• 3. Enhanced Safety: Includes peak absorption circuit and metal casing for safety against power spikes and overheating.

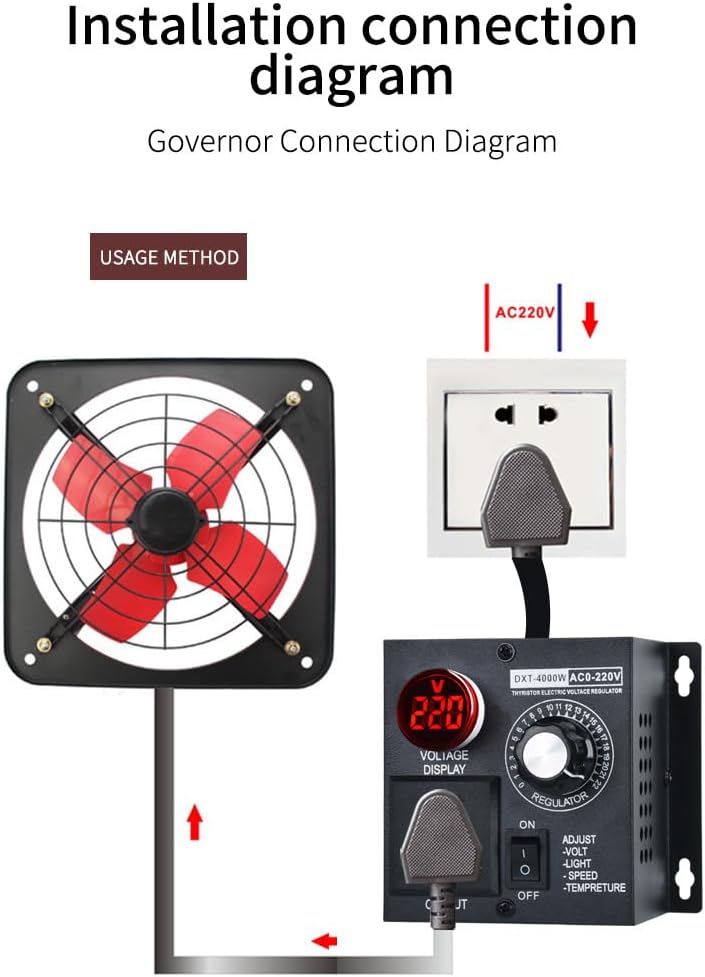

• 4. Wide Compatibility: Ideal for controlling fans, electric stoves, and motors, with specified limits for inductive and resistive loads.
• 5. Easy to Use: Offers adjustable voltage regulation for precision control, enhancing performance for various electrical devices.
