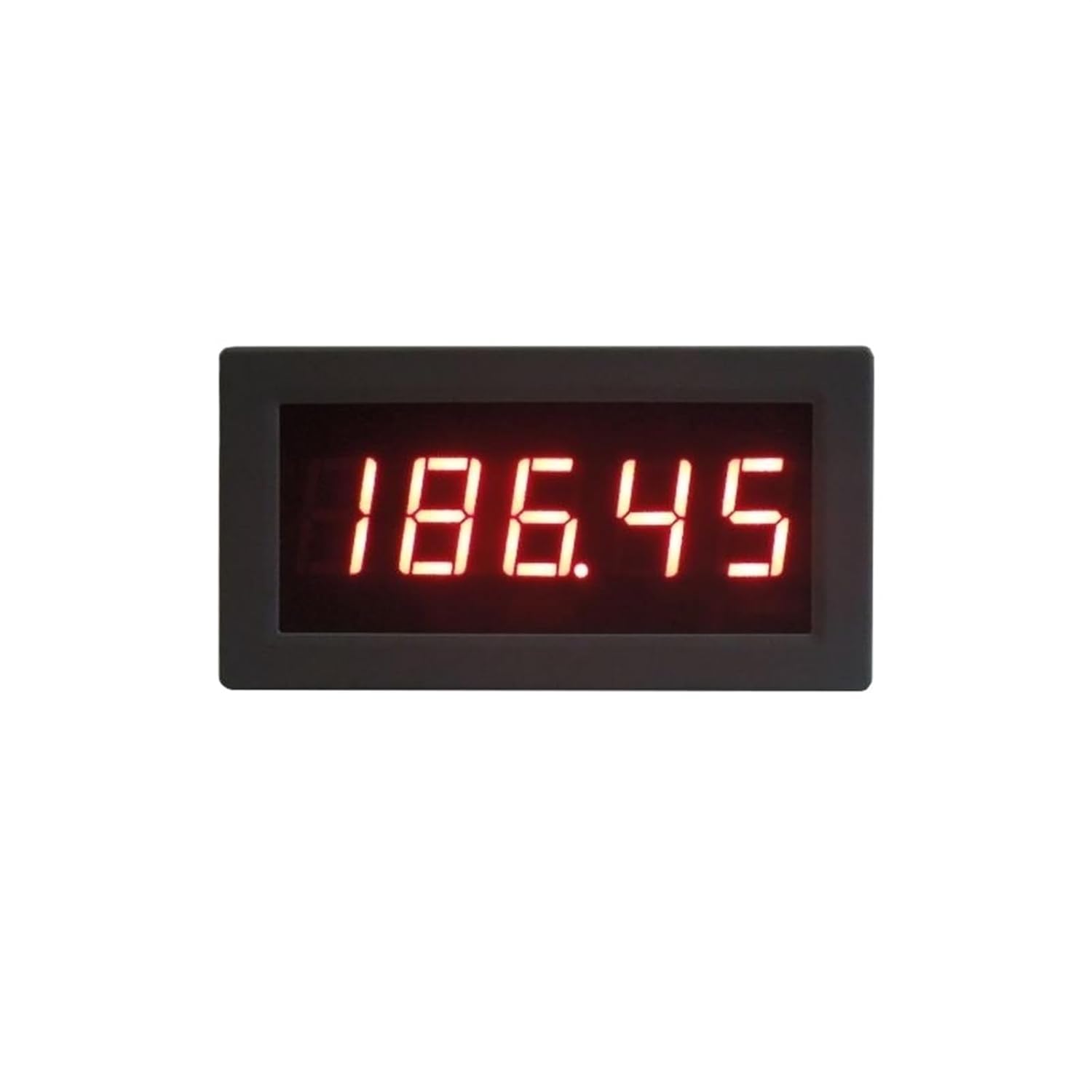

DC 200mV Voltage Meter Power Supply DC5V 12V 24V DC Voltmetre Voltage Tester 0.56'' LED Display Red Blue 5-Digit Volt Instrument(Power Supply DC12V)

AmmetersDC 200mV Voltage Meter Power Supply DC5V 12V 24V DC Voltmetre Voltage Tester 0.56'' LED Display Red Blue 5-Digit Volt InstrumentAttention:1.The negative of power supply and the testing side areconnected,so it is recommended to use a separate power supply(ie: independent power supply).2.If you select "Power supply DC5V",the working voltage is "5V±0.5V",or it will be burnt.Technical Parameters:Power supply:DC5V(5V±0.5V) /12V/24V selectable<;100mATest voltage:DC200mVDimension:79*43*25mmMounting hole:76*39.5mmDisplay mode: 0.4 "LED with red/blue digitsMeasurement accuracy: 0.1% (± 2 digits) Measurement rate: 2 times/S Features:Thismeter can test positive and negative value.Power supply reverse protection.The crystal of the meter is quartz crystal with high precision and high stability.The LED digital tube display part, with all the limited current resistance, will be not appeared "the bright and dark inconsistency".Package Include:1 piece* LED Digital DC Voltage MeterWorking conditions:Operating temperature: -10 ~ +50 Working humidity: 10 ~ 80% (no condensation)Working pressure: 80 ~ 106kPaSun exposure: no direct exposure

• Ammeters
• DC 200mV Voltage Meter Power Supply DC5V 12V 24V DC Voltmetre Voltage Tester 0.56'' LED Display Red Blue 5-Digit Volt Instrument
