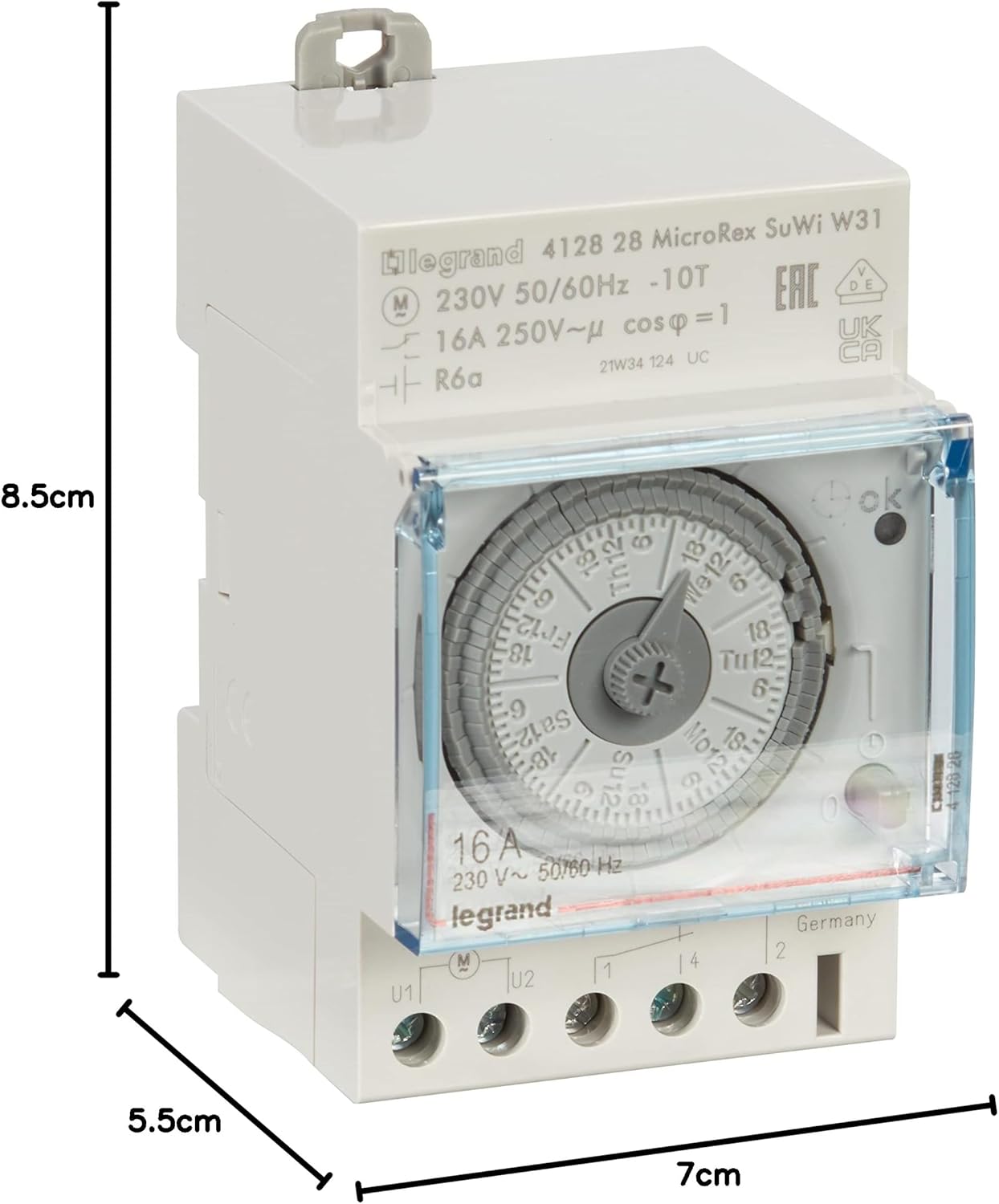

Legrand 412828 MicroRex W31 Su/Wi Plug & Play, Mechanical Timer with 7-Day Programme, Series Mounting Timer for Top Hat Rail, 3-Module

MicroRex Plug & Play, 3 modules, daytime timer according to VDE 0631 part 1 and part 2-7, EN 60730-1 and EN 60730-2-7. With manual switch on/off automatically. Technical features: timer with 7-hour program (day switch), automatic time setting when started, automatic summer/winter time adjustment, with quartz clockwork, accuracy +/- 0.2 sec./day, power reserve of 6 years (time buffer in case of power failure), surface mounting possible with wall bracket and terminal cover, device width of 3 division units à 17.5 mm,quartz motor, 230 V, 50/60 Hz, 1 change-over contact 250 V/50 Hz, 16 A, switching step: 2 hours. Shortest switching time: 4 hours. Sealable lid. Operating temperature: -10 °C to +55 °C. Protection type: IP 20.

• Analogue timer with 7-day programme (weekly timer) for top-hat rail, 3-module
• Plug & Play: Automatic time setting during start-up, as well as automatic summer/winter time changeover
• With quartz motor (speed accuracy +/- 0.2 seconds/day; power reserve of 6 years), 230 V, 50/60 Hz
• Easy-to-use daytime disc with captive segments
• Protection class: IP 20.
