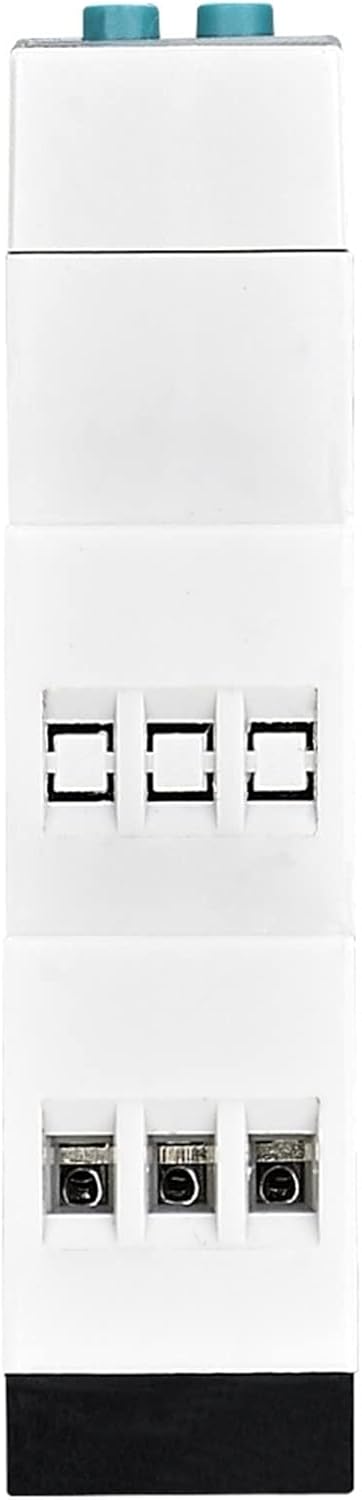

MCB-10 Multifunctional LCD Timer Relay(110VAC 24VAC-DC)

relayGeneralMCB-10 time relay is specifically designed for controlling the time and incoming data and can be used in industry, residential,factory facilities.Device Display and ButtonsIt indicates the remaining time.Set time: It shows the time set by the user.Up / Down (/): Up/Down ()(): lt shows that the counting starts from set time or continues until the set time. It blinks during the set time while the device isrunning.Function: lt shows the device operating function.Time Unit: lt shows time unit which is set time.LED Indication: It shows relay On or Off status.Button(SET)(ADJ):Press and hold for 3 seconds at the same time to enterthe settings menu.(SET): lt confirms parameters in function selection menu and time adjustment.(ADJ): lt adjusts parameters in function selection menu and time adjustmentmenu.Function Button(Fn)-A- ON DelayAfter the device is powered on, the delay starts, the M Led flashes during timing, and the relay is output after the delay ends, relay Led is on and the M Led is on.Re-execution requires power-off reset.-b- OFF DelayAfter the device is powered on, Relay immediately output, relay Led on, delay starts, the M Led flashes during timing, and the relay is stop output after the delay ends, relay Led off and the M Led is on. Re-execution requires power-off reset.-C- Control ON DelayAfter the device is powered on, when the T signal is turned on, the delay starts, the M Led flashes, and the relay outputs after the end, relay Led on and the M Led is on.If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared.-d- Control OFF DelayAfter the device is powered on, when the T signal is turned on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.If the T signal is turned
