Motor Wireless Remote Control Switch System AC220V Motor Positive&Negative Reverse controller UP*Down*Stop garage door system

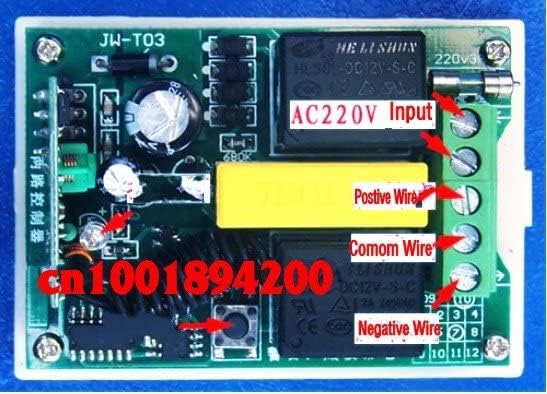

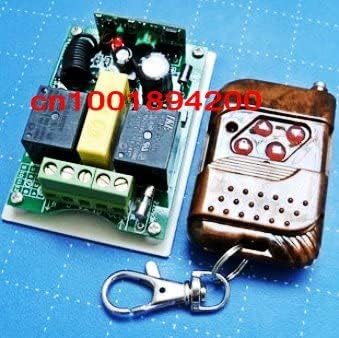

The wireless motor controller have been widely used in1. garage door UP * Down* Stop2. Projection Screen UP * Down* Stop3. Curtain UP * Down* Stop4. whitewash wall machine UP * Down* Stop5. Lifting appliance UP * Down* Stop6. Elevator UP * Down* StopThe System Included1PCS 3 buttons Transmitter "UP * Down* Stop "1PCS ReceiverSpecifications:Working Frequency : 315MHZTransmitter working voltage: 12V 23A battery (Included)The Receiver Working Voltage : AC 220V 50HZThe Receiver Rated Output Power: 1500WLearning and Clear Transmitter Mothod :Learn: Press the learning button, it means it has been putting in the study when the indicator light are flashing .then you press any buttons of the remote control to transmite signal . it means studying successfully when the indicator flash 2 times until the light goes out Remove/Clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfullyNotice:Please choose the right voltage .or it would distroy the component even the life threatening,Please not to load high than the contact capacity ,it must have better less than thethe contact capacity 70%.Install :Please let the professionel to do it .cut down the power before you install it .don't take it apart on yourself .if you find the transmitting distance is shorter .please change the battery of the transmitter (12V 23A)Item specifics:Motor type: AC MotorPlace of origin: CNIs customized: Yes

• Motor type: AC Motor
• Place of origin: CN
• Is customized: Yes
