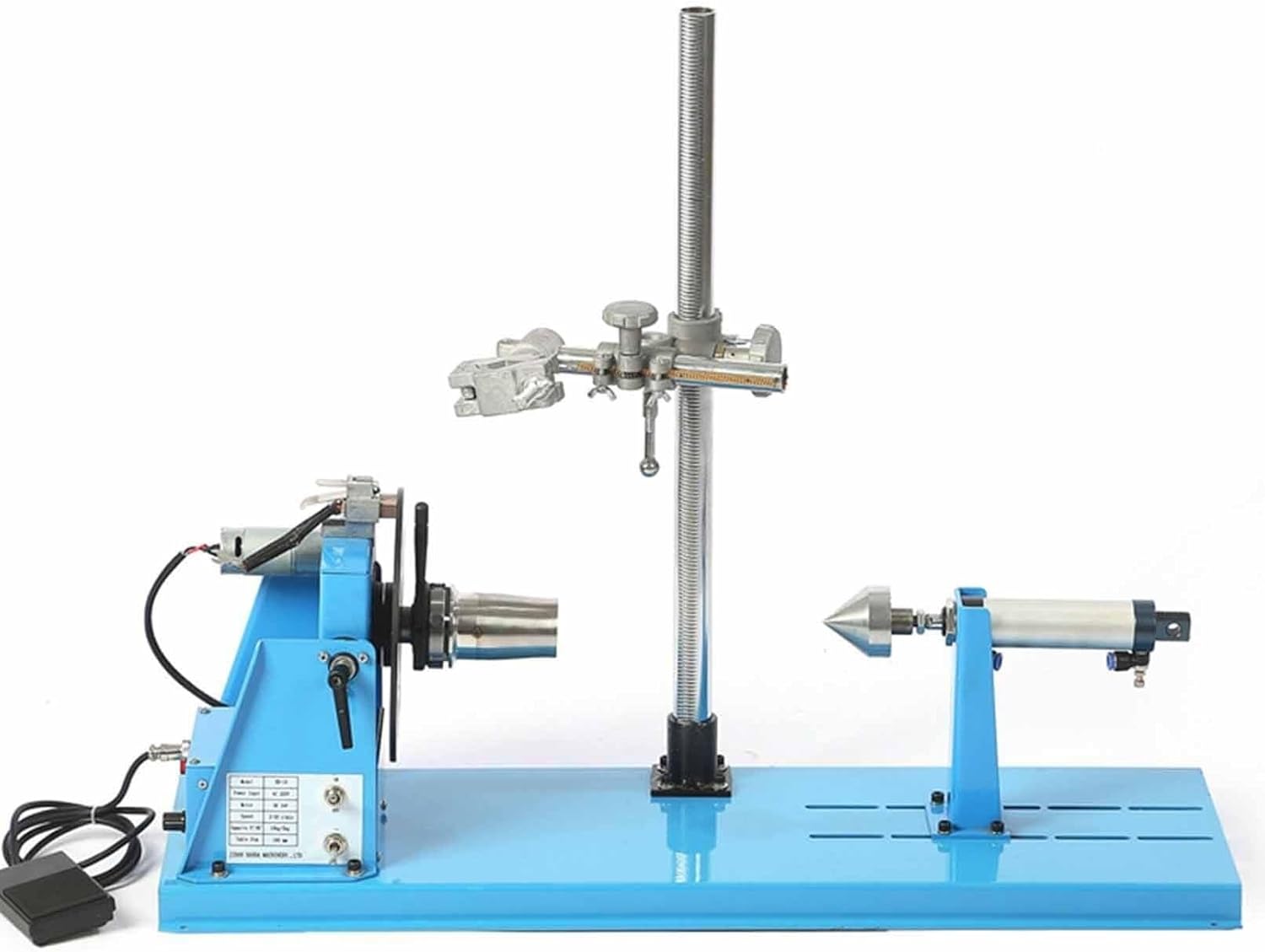

Rotary welding positioner, 10/5 kg light automatic welding positioner, 180 mm welding turntable, 90° welding rotary table welding machine positioner

Input voltage: 220V 50HZMaximum load: 10/5kgWorkbench tilt angle: 0-90°Workbench diameter: 180MMWorkbench speed: 2-10/1-7 rpmWelding current: 80ADrive motor: DC24V 20WWorkbench flip: manualRotation motor: 20WDimensions: 320*270*230mmPackage1x Rotary welding positioner turntableAll accessories

• [Stepless speed regulation] The rotating structure of the welding positioner is driven by a 20W DC motor, which can achieve stepless speed regulation
• [Small and light] The turning range of the rotating worktable is 0~90, and the turning angle is locked safely and stably. It is suitable for small workpieces and can achieve welding at any angle.
• [Easy to operate] The worktable of the rotary welding positioner rotates with a foot switch, which is easy to operate
• [Fixed welding gun position] The welding turntable can be equipped with a welding chuck and a welding gun adjustment mechanism to fix the welding gun position, and a pneumatic tail can also be installed to keep the two ends of the workpiece concentric.
• [Easy to use] The clamp and the worktable adopt a simple mechanical connection method with high positioning accuracy; precise structure, easy operation, and flexible use
