WAGO Lever Nut 125pc Wire Splicing Connector Kit with Case. WAGO Lever Nuts 221-412, 221-413, 221-415, and 221-2401 Included.
4.3 (51 items)
Limited Time SaleUS$44.69 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210268542 | Release Date | 2026/04/02 | List Price | US$29.80 | Model Number | 210268542 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

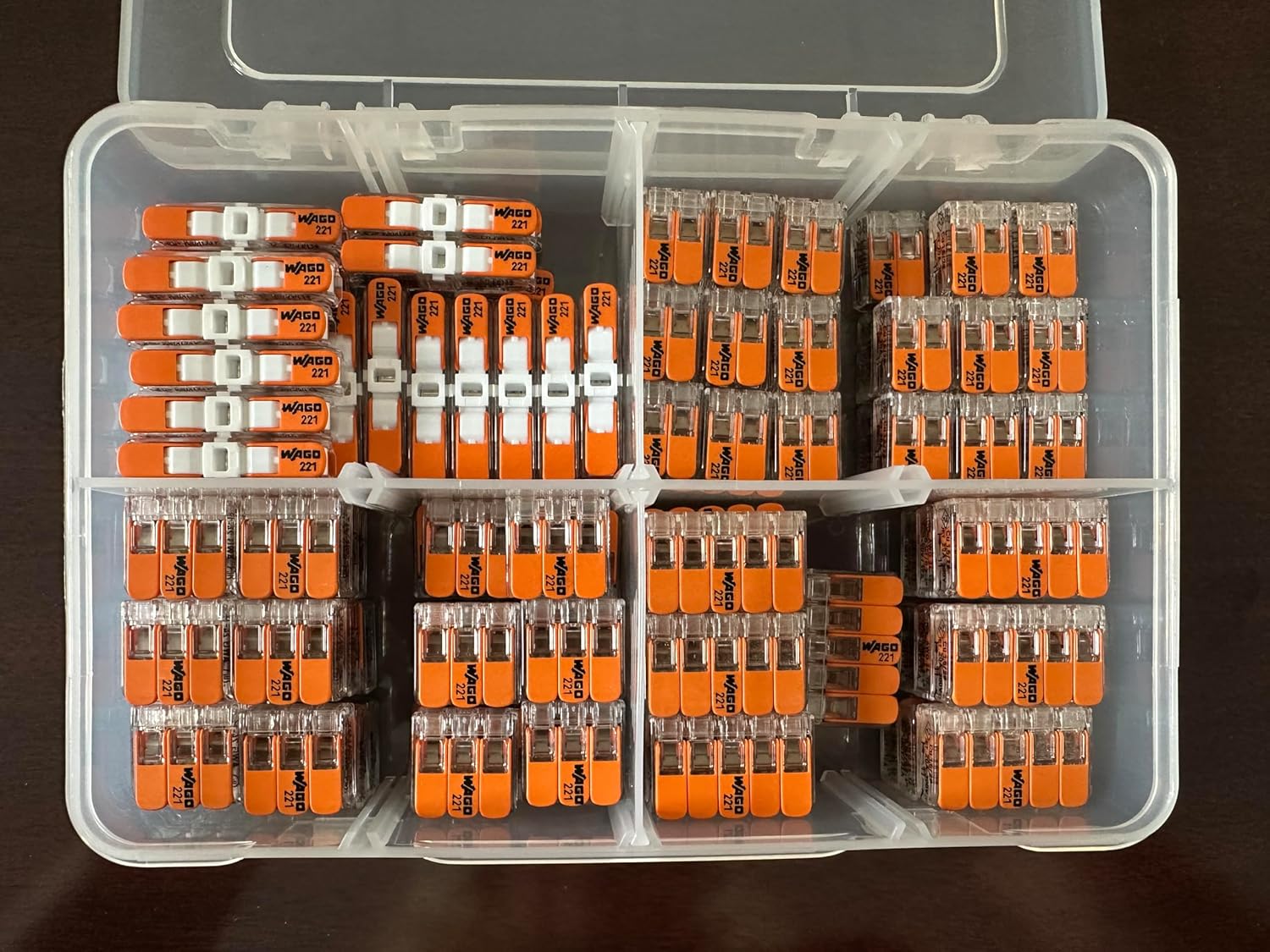

125pc Wire Splicing Connector Kit Wire Splicing Connector Kit includes four types of WAGO 221 LEVER-NUTS in a convenient reusable plastic case. All connectors connect any combination of solid, stranded, and fine stranded. These Lever-Nuts will make connecting wires faster and more reliable. Minimize space consumption in the junction box by 40% compared to 222 Series. Each connector has clear housing for easy visual confirmation of busbar connection. Each connector has comfort recessed sides featuring the strip length, wire gauge, voltage, amperage, and certifications on the sides. 221-412, 221-413, and 221-415 have two test ports, one located on the front, and one located on the back of the connector. The 221-2401 has a test port located on the top in the center of the connector. Every Connector Kit contains an operating instructional card with easy-to-read instructions with each connectors electrical data. Each reusable case includes the following quantity of each connector: 35x 221-2401 (2 conductor inline) 35x 221-412 (2 conductor) 35x 221-413 (3 conductor) 20x 221-415 (5 conductor). Assembled in the USA.
- UL Listed, Genuine WAGO Lever Nuts
- 221-41X Terminates: 24 - 12 AWG, 221-2401 Inline Terminates: Solid conductor 20 - 12 AWG Stranded & Fine-stranded conductor 18 - 12 AWG
- 600V, 20A
- Clear Housing provides visual confirmation of the correct strip length and of the busbar connection
- Includes: 35x 221-2401 (2 conductor inline), 35x 221-412 (2 conductor), 35x 221-413 (3 conductor), 20x 221-415 (5 conductor) with case
- Conductor Material: Copper
| UPC | 850072558301 |
|---|---|
| Color | Transparent housing with white and orange levers |
| Gauge | 18 - 12 AWG, 20 - 12 AWG, 24 - 12 AWG |
| Model | Combo Kit - 125pc, 221-41X, 221-2401 |
| Voltage | 600 Volts |
| Brand Name | ITDsales |
| Unit Count | 125.0 Count |
| Item Weight | 0.96 Pounds |
| Part Number | 221-412, 221-413, 221-415, 221-2401, |
| Manufacturer | ITDsales |
| Mounting Type | DIN Rail Mount |
| Connector Type | Inline Butt Splice, Lever-nut Cage Clamp |
| Current Rating | 20 Amps |
| Number Of Poles | 1 |
| Specification Met | CQC, EAC, RoHS, UL, cUL |
| Number Of Contacts | 5 |
| Included Components | Reusable Case: 35x 221-2401 inline, 35x 221-412, 35x 221-413, 20x 221-415 |
| Item Dimensions W x H | 7.25"W x 1.5"H |
